- Camera: 25" Camera Focus Pattern
![Pin It](http://pinterest.com/pin/create/button/?url=https://www.thelargeformatstore.com/camera-25-camera-focus-pattern/&media=https://cdn10.bigcommerce.com/s-hmehq/products/615/images/1113/28CX6779D215-1__44911.1473953280.1280.1280.JPG?c=2&description=Paradigm Imaging Group - Camera: 25" Camera Focus Pattern, $265.05 (https://www.thelargeformatstore.com/camera-25-camera-focus-pattern/))

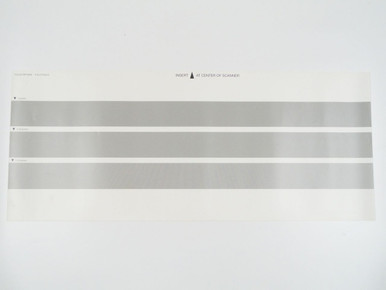

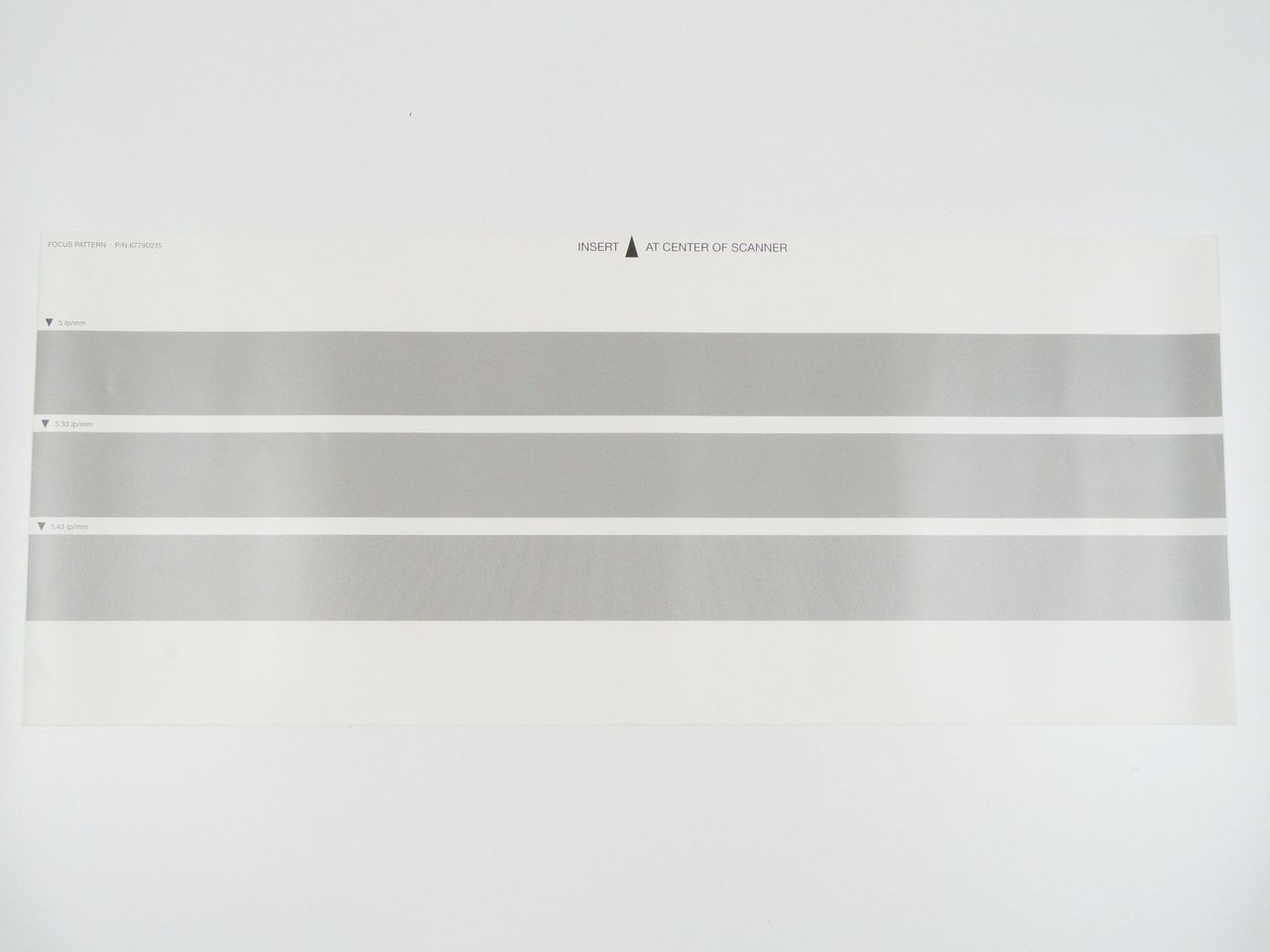

Camera: 25" Camera Focus Pattern
RRP:
$279.00
(You save $13.95)
$265.05
SKU:
28CX6779D215R01
Brand:
Weight:
7.00 LBS
Shipping:
Calculated at checkout
Product Description
The 25" Focus Pattern is used on Contex, Vidar, GTCO Calcomp and OCE 25" large format scanners to adjust the focus after replacing the camera board. Manufacturer's part number is 6779D215R01.
This part is used on scanner models GA67D, GC67D, GQ67D, GR67D, GY67D and KL67E. You can find the model number on the back of the scanner. Also, the model number is the first 5 characters in the serial number. See below for a list of model names:
| Contex | Cougar 25 / Chameleon 25 / Cougar Sx25 / Chameleon Sx25 / Toucan G25 / HD2530 |
| Calcomp | ScanPlus IV 625C / ScanPlus IV 825C / ScanPlus IV 625T / ScanPlus IV 825CE / ScanPlus IV 925Sx / ScanPlus IV 725Sx / ScanPlus 6 LF925 / ScanPlus 7 HD925 |
| Vidar | Atlas 25 / Select 25 / Atlas SP25 / Select SP25 / Lynx25e / HD2530 |
| OCE | CS4025 / CS4026 / CS4020 / CS4021 |
Click here to download the service manual for models GA67D and GC67D.
We do not have the service manual for GQ67D and GR67D scanner models.
Click here to download the service manual for model GY67D.
Click here to download the service manual for model KL67D.
Note: This is new old stock.
