- Board: CBEA Camera Board (w/ CCD Sensor & Mounting Plate)
, $188.87 (https://www.thelargeformatstore.com/board-cbea-camera-board-w-ccd-sensor-mounting-plate/))

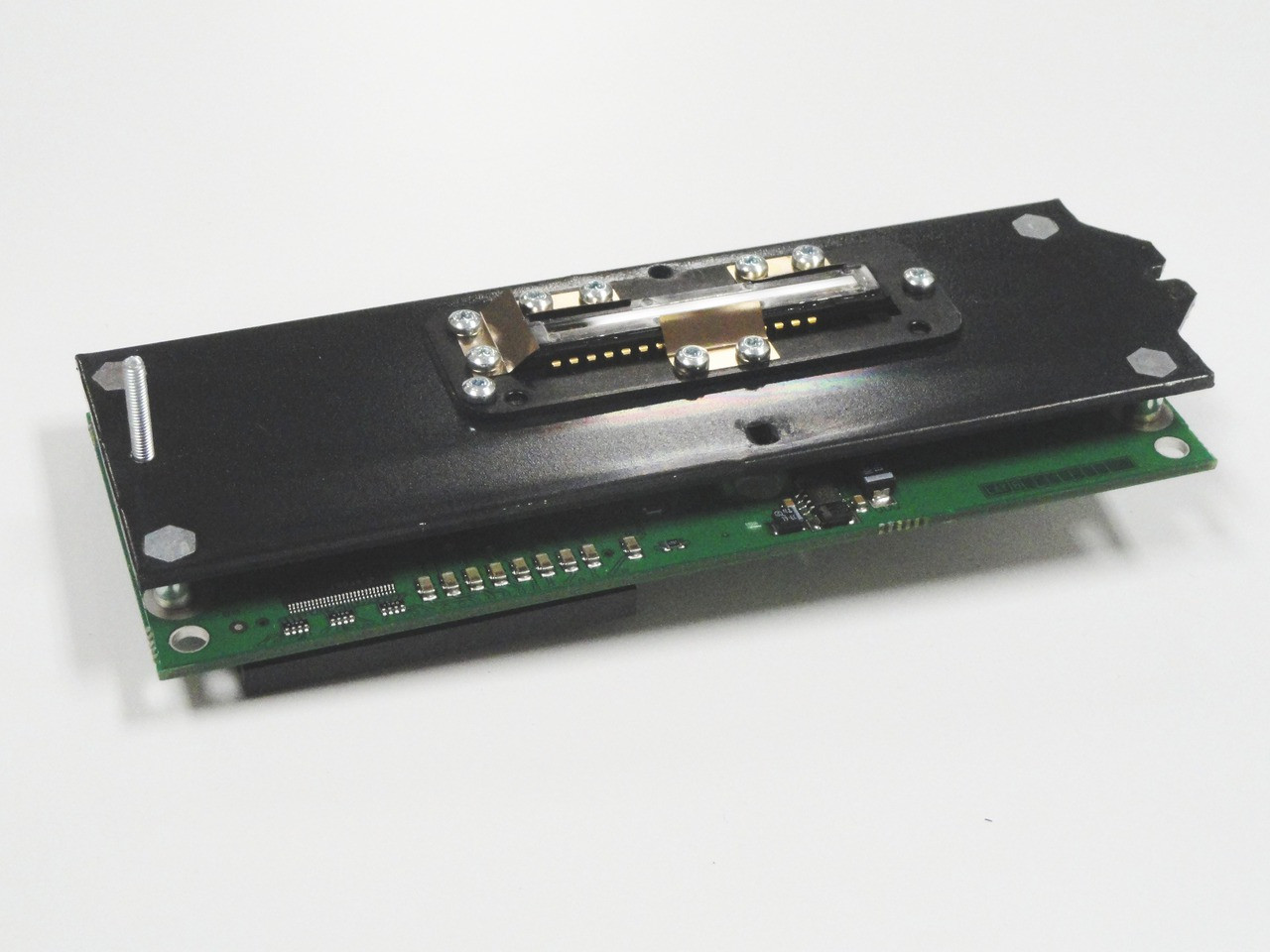

Board: CBEA Camera Board (w/ CCD Sensor & Mounting Plate)
Product Description
This is the CBEA camera board for the Contex, GTCO Calcomp, OCE, HP and Vidar scanners. Manufacturer's part number is 6735D001R01.
This board is new old stock from Contex and is no longer available from Contex. Limited to stock on hand. When these are gone, there will be no more new stock available.
IMPORTANT NOTE: Obviously, we cannot guarantee that replacing this board will fix your scanner and we have no way to test the board if it is returned. Therefore, it is provided AS IS and with no warranty. The price has been reduced by 90% from the original list price to reflect this. The board can only be returned if an RMA number is given and the seal is not broken. If the return is accepted, a 25% restocking fee will be deducted from any refund.
This board is used on scanner models GA67D, GB67D, GC67D, GD67D, GF67D and GH67D. You can find the model number on the back of the scanner. Also, the model number is the first 5 characters in the serial number. See below for a list of model names:
| Contex | Cougar 25 / Cougar 36 / Chameleon 25 / Chameleon 36 / Crystal Tx40 / Magnum XL54 |
| Calcomp | ScanPlus IV 625C / ScanPlus IV 825C / ScanPlus IV 636C / ScanPlus IV 836C / ScanPlus IV 625T / ScanPlus IV 825CE / ScanPlus IV 636T / ScanPlus IV 836CE / ScanPlus IV 740CE |
| Vidar | Atlas 25 / Atlas 36 / Select 25 / Select 36 / Select 40 / Atlas P54 |
| OCE | CS4025 / CS4026 / CS4035 / CS4036 / CS4020 / CS4021 / CS4030 / CS4031 / CS4054 / CS4055 |
| HP | CC800ps / 815mfp / 4200 |
Click here to download the service manual for models GA67D and GM67D.
NOTE: The CBIA camera board is a substitute for the CBEA camera board.
| Manufacturer | Contex |
| Manuf. Part# | 6735D001R01 |
